Garmin 95 Transducer
- Thread starter Bluze
- Start date
Jack M
Moderator
I have had good luck on the Garmin website . I have called them a few times also ,always very helpful.
You can also try greatlakesskipper.com
You can also try greatlakesskipper.com
Potomacbassin’
Well-Known Member
The cable itself is typically sealed on the transducer end and not a replaceable item, so it's either splice back together or replace the transducer (with cable) itself.
Problem is, the Garmin 90 you have (labeled Fishfinder 95 for Bennington) used a 6-pin connector from what I can tell here:
The current dual-beam transducer that Garmin manufactures is either a 4 or 8-pin connector:
www.garmin.com
You could try finding adapters so you can continue to use your old 6-pin depth finder with a new transducer:
www.westmarine.com
But being the cheapo that I am I'd try splicing first.
Good luck!
Problem is, the Garmin 90 you have (labeled Fishfinder 95 for Bennington) used a 6-pin connector from what I can tell here:
The current dual-beam transducer that Garmin manufactures is either a 4 or 8-pin connector:
Garmin Dual Beam | Transducer
The Garmin Dual Beam transducer replaces the one included with your echo™ series fishfinder.
www.garmin.com
You could try finding adapters so you can continue to use your old 6-pin depth finder with a new transducer:

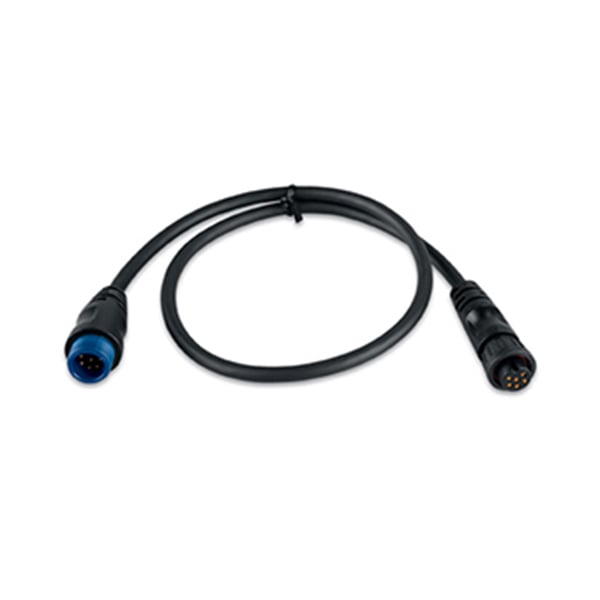

6-Pin Female to 8-Pin Male Transducer Adapter | West Marine
Check out our 6-Pin Female to 8-Pin Male Transducer Adapter and more from West Marine!
www.westmarine.com
But being the cheapo that I am I'd try splicing first.
Good luck!
Thank you for the suggestions. The "rats" chewed the cable right at the entry to the transducer, so there is no room for splicing.The cable itself is typically sealed on the transducer end and not a replaceable item, so it's either splice back together or replace the transducer (with cable) itself.
Problem is, the Garmin 90 you have (labeled Fishfinder 95 for Bennington) used a 6-pin connector from what I can tell here:
The current dual-beam transducer that Garmin manufactures is either a 4 or 8-pin connector:
Garmin Dual Beam | Transducer
The Garmin Dual Beam transducer replaces the one included with your echo™ series fishfinder.
You could try finding adapters so you can continue to use your old 6-pin depth finder with a new transducer:
6-Pin Female to 8-Pin Male Transducer Adapter | West Marine
Check out our 6-Pin Female to 8-Pin Male Transducer Adapter and more from West Marine!
But being the cheapo that I am I'd try splicing first.
Good luck!
I am holding out to see if anyone has one sitting around...
(I am more "cheapo" than you are) (laughing).
Thank you for the information, Jack. I am researching all sources.
sunedog
Well-Known Member
- Messages
- 534
- Reaction score
- 1,010
The Garmin 95 on my last boat gave up the ghost and it was a chore finding a replacement. I also wasn't interested in upgrading because it would have required hacking into the dash. It took me a while but I found a good used Garmin 90 on Facebook Marketplace. Maybe you can find a transducer cable there. If you come across a head unit with the transducer cable, buy it. You can turn around and sell the head unit if you don't want to keep it for a spare. They are in demand.
Potomacbassin’
Well-Known Member
What a pain.
Not sure what your search will produce but if you end up trying to Macgyver something maybe the below chart can help. Seems like any transducer will have a series of color coded wires you might be able to splice into the existing i put cable.
This is from the Garmin manual for a splicing block used to convert a 6-wire setup to an 8-wire fishfinder.
Not sure what your search will produce but if you end up trying to Macgyver something maybe the below chart can help. Seems like any transducer will have a series of color coded wires you might be able to splice into the existing i put cable.
This is from the Garmin manual for a splicing block used to convert a 6-wire setup to an 8-wire fishfinder.
