Hour clock

Discussion in 'Do-It-Yourself Projects' started by Tracy, Sep 19, 2017.

  1. Tracy

    Tracy New Member

    Messages:
    2
    Likes Received:
    0
    Have a question on my hour meter. Sometimes when I turn the ignition on it comes on sometimes it doesn't. Could it be a loose wire or a bad gauge?

  2. SEMPERFI8387

    SEMPERFI8387 Moderator

    Messages:
    7,971
    Likes Received:
    2,271
    Location:
    York, Pa
    Turn on as in engine not running vs. running? It should only "meter" with engine running.

    Mike31406 likes this.
  3. Tracy

    Tracy New Member

    Messages:
    2
    Likes Received:
    0
    Correct with the engine running. The display is intermittent.

  4. Rockie69

    Rockie69 Well-Known Member

    Messages:
    2,236
    Likes Received:
    875
    Location:
    Iowa
    I think we might want to do a test on this. I think it runs when the key is turned on.

    BulldogsCadillac and cwag911 like this.
  5. cwag911

    cwag911 Moderator

    Messages:
    5,088
    Likes Received:
    1,230
    Location:
    Denver, NC on beautiful Lake Norman
    Yes it does.

  6. royal4

    royal4 Well-Known Member

    Messages:
    204
    Likes Received:
    95
    Location:
    Jordan Lake, NC
    yup... key on --> clock runs (doesn't have to be running)

  7. SEMPERFI8387

    SEMPERFI8387 Moderator

    Messages:
    7,971
    Likes Received:
    2,271
    Location:
    York, Pa
    I guess I'm wrong in my post, but that is an odd way to "meter" your engine hours. I guess it doesn't matter on mine as there's no reason to have my key in the "on" position, unless I'm actually running the motor.

  8. Rockie69

    Rockie69 Well-Known Member

    Messages:
    2,236
    Likes Received:
    875
    Location:
    Iowa
    I agree with you. I noticed this when I first got my boat and thouht it was odd too.

  9. cwag911

    cwag911 Moderator

    Messages:
    5,088
    Likes Received:
    1,230
    Location:
    Denver, NC on beautiful Lake Norman
    My lawnmower is the same way, key on=meter runs.

  10. Maynard G. Krebs

    Maynard G. Krebs Well-Known Member

    Messages:
    224
    Likes Received:
    111
    It's a bad design. I had to have the key on for the bait tanks to operate and that put false hours on the engine. By the time I figured it out the meter was showing double the hours the engine actually had. Rewired it so the tanks can be run without the key in the on position. Certainly not something the end-user should have to do. Don't they have engineers at the factory for that sort of thing?

    Spoiledrotten likes this.
  11. morganbell

    morganbell Member

    Messages:
    14
    Likes Received:
    3
    It should be the meter that is contributing to your problem.

  12. MikeB

    MikeB Well-Known Member

    Messages:
    52
    Likes Received:
    47
    Location:
    Spring Branch TX (Canyon Lake)

    I double checked, and mine doesn't count up if the ignition is on, but the engine is not running. The following is from the Faria website the maker of Bennington branded instruments..

    Hourmeters by Faria Beede have an icon in the left hand corner of the display. The icon lets the operator know that hours are being displayed. During normal operations the icon displays solid when the key is on and the engine has not yet been started. Turning the engine on activates the counting function. The icon will begin to blink indicating that the hourmeter is currently counting hours for the connected engine. This is normal.

  13. ugleeual

    ugleeual Well-Known Member

    Messages:
    48
    Likes Received:
    14
    ^^^THIS^^^

  14. mrob

    mrob Active Member

    Messages:
    31
    Likes Received:
    24
    Location:
    Jenks, Oklahoma
    I was told if you go from motor running to (I will say accessory) the hobs will keep running. To stop hobs you need to turn to off position then to accessory. Is this true? Brought boat home 2 weeks ago, but haven't had out yet. Grandkids sports on the weekends. :)

  15. Rockie69

    Rockie69 Well-Known Member

    Messages:
    2,236
    Likes Received:
    875
    Location:
    Iowa
    I can only speak from experience. I logged my hours on my boat from the start. I drove across the lake about a 1/2 mile to the "beach" going as fast as I could. Shut the boat off and turned it back on, thinking I needed the key on for the stereo. (New boat.) Drove back to my slip, fast as I could. The next time out I logged the hours and I had 8 hours on it. I bet I had 30 minutes running the engine tops, this is when I figured out I did not need the key on. So my set up must have been defective or they have changed it since 2013. I think everyone should verify this on their boat. Every one could be different.

  16. MikeB

    MikeB Well-Known Member

    Messages:
    52
    Likes Received:
    47
    Location:
    Spring Branch TX (Canyon Lake)
    Interesting. Is your hour meter located within the tachometer? Is the hour meter part of a Yamaha gauge package?

  17. Rockie69

    Rockie69 Well-Known Member

    Messages:
    2,236
    Likes Received:
    875
    Location:
    Iowa
    [​IMG]

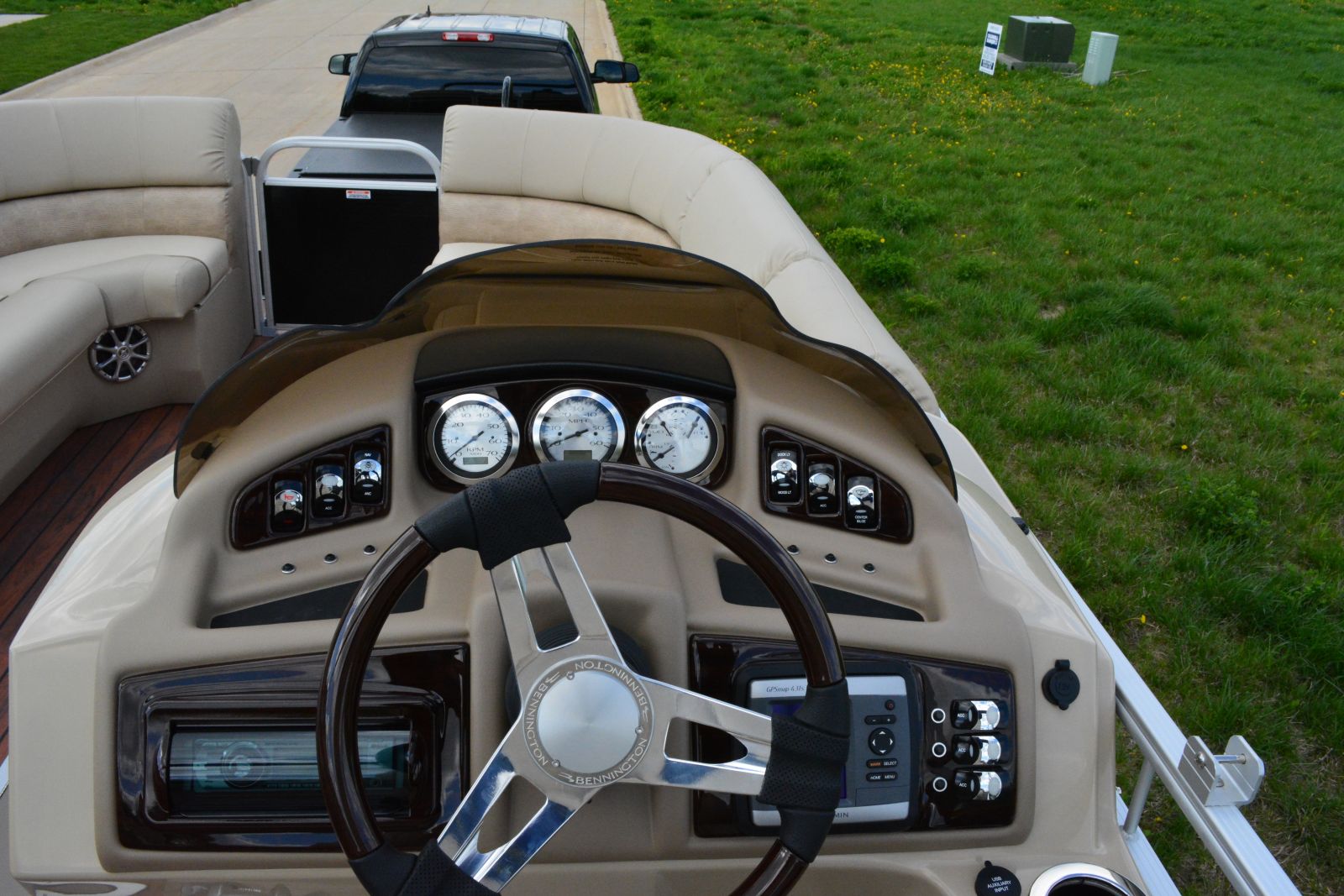

    It's a digital display
