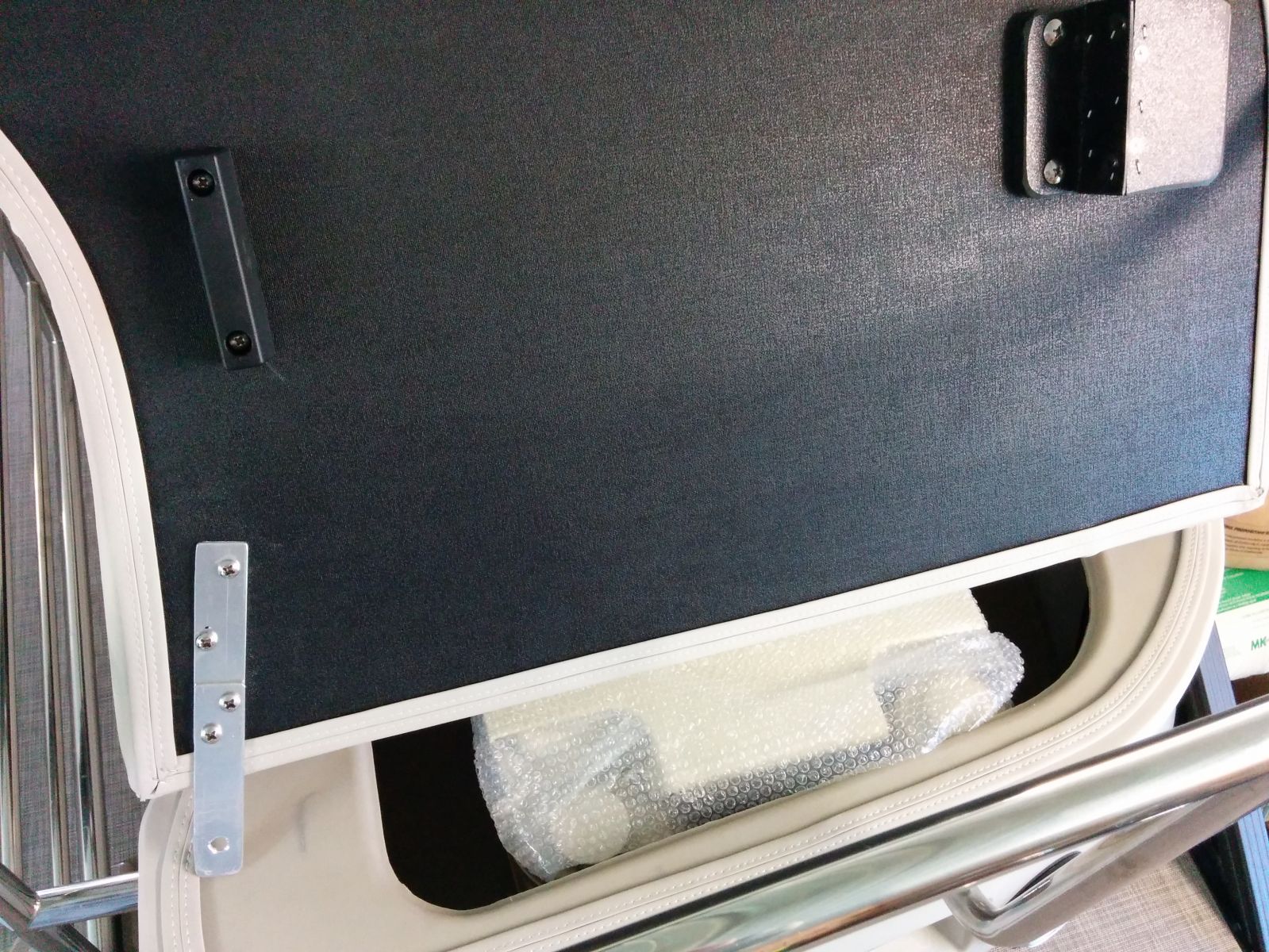

Retainer bracket I made and installed

  • Media owner gnc1017
  • Date added
It is two pieces because I just had some short stock laying around. One could have done the job if bent properly to accommodate the thickness of the vinyl seam that runs the perimeter of the seat cushion (underneath).
